| Product Specification | |
|---|---|
| Processor | Broadcom BCM2712, Quad core-A76 @ 2.4GHz |
| Memory | RAM8GB, eMMC64GB (Depend on model) |
| OS | Raspberry Pi OS |

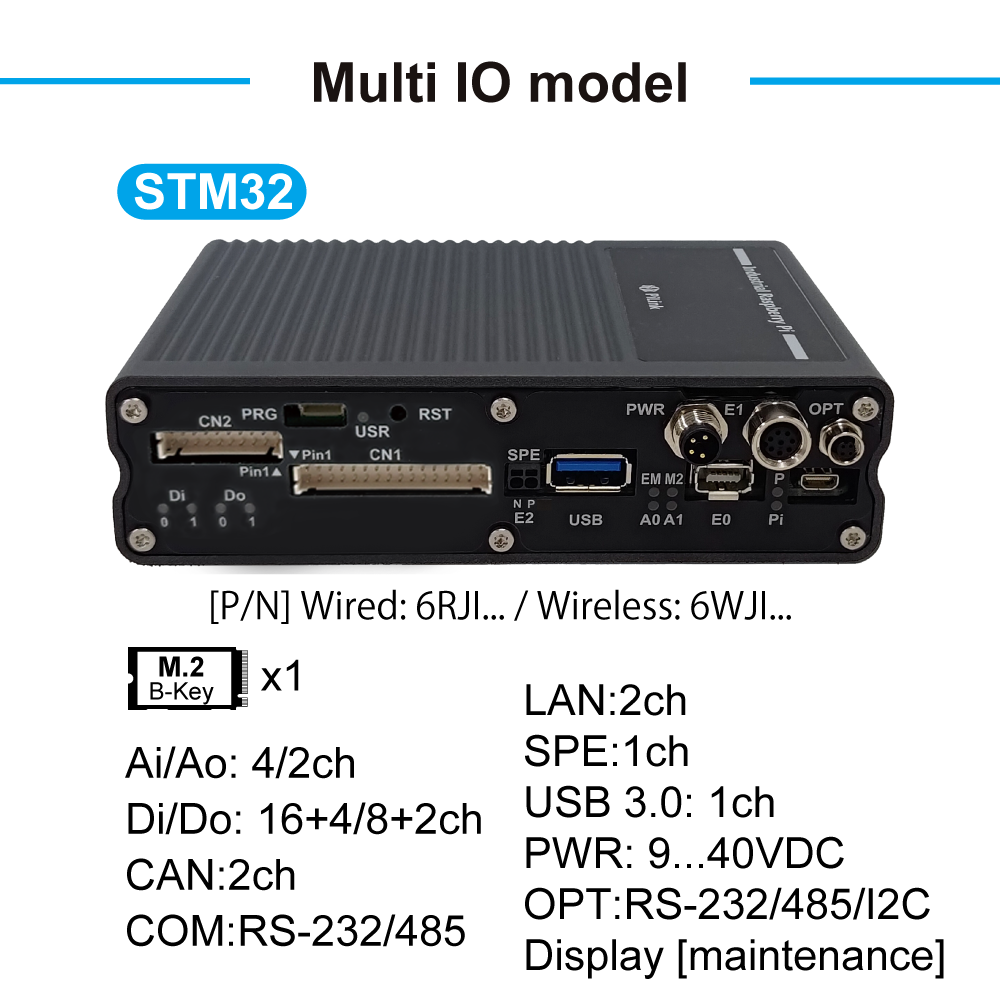

| I/F Front | 1x PWR: Power input, 2-line 2x LAN: GLAN[1000Mbps] x2ch 1x SPE : 10BASE-T1S x1ch 1x OPT : i2c/RS-232/485 selectable 1x USB: USB3.0 Host Type-A 1x CN1: – Di16ch[14ch] (PNP)/2.4mA at 24VDC – Do8ch(PNP)/Pushpull0.1A, High-side0.5A – COM 1ch RS-232/RS485 (half duplex) switching – CAN 1 or 2ch/CAN 2.0B, CAN FD 1Mbps 1x CN2: – Di4ch (NPN)/7.2mA at 24VDC – Do4ch (PNP)/High-side0.5A, pushpull0.1A – Ai 4ch 16bit(0-5/0-10VDC) [Note: ch3 only 0-5/0-100VDC] – Ao 2ch 12bit(0-5/0-10VDC) – SPI 1ch/ Max.12Mbps 1x PRG: STM32 programming port 1x Maintenance: Maintenance Display port(Reserved) [Option]1x WLAN IEEE 802.11 b/g/n/ac, Bluetooth 5.0, BLE [Option]1x LTE(M.2 slot EM7431) |
| I/F Back | 1x USB-C: USB Type-C(eMMC writing only) 1x SW: eMMC write switch 1x microSD: microSD slot, 1x nanoSIM slot |
| I/F Internal | 1x M.2 slot B-key* 1x CSI, 1x GPIO 40pin, 1xFAN, 1x BAT, 1x SW |
| RTC/NVRAM | BR1225[or CR1225] Backup RTC MCP79410-I:CR1632 Backup RTC, NVRAM |
| Watchdog | Built-in hardware watchdog |
| Power/Consumption | Power rating DC12/24V, Range DC9V～40V/approx.15W |
| Temperature | Operating Temp.: -20…+60 °C, Storage: -25…+85 °C |
| Humidity | Operating Humi.: 0～95% (non-condensing) |
| Waterproof grade | IP20 |
| Housing material | Aluminum powder coating |
| Dimensions | W132 x D87 x H35mm (excluding protrusions) |
| Weight | Approx. 550g |
| Vibration/shock | IEC 60068-2-6 / IEC 60068-2-27 |
| EMI | Radiated emissions EN55016-2-3 |
| EMS | Electrostatic radiation immunity EN 61000-4-2 Radio frequency electromagnetic fields EN 61000-4-3 Fast transient burst EN 61000-4-4 |
| Installation method | DIN rail mounting, wall mounting [Option] |
| Note | * Not a full pin connection. USB3.0, PCIe, and SIM are connected. |
